Tyndall Air Force Base (AFB) is dedicated to achieving mission readiness, improved base resilience, and enhanced quality of life through optimized land management practices. These integrated land management design guidelines advance the creation of a base landscape that reflects the restorative partnership between the U.S. Air Force (USAF) and the U.S. Fish and Wildlife Service (USFWS) to advance best management practices employed within Tyndall AFB’s Integrated Natural Resources Management Plan (INRMP).
These guidelines provide a framework of best practices and performance goals to create sustainable outcomes rather than prescribe site-specific solutions. The designer/contractor will use these guidelines as applicable to their specific project. This effort requires collaboration with Tyndall AFB Natural Resources staff for plant species selection and collaboration with base plan reviewers in incorporating landscapes that perform measurable outcomes in environmental, social, and economic goals. Performance landscapes can provide benefits such as flood protection, maintenance reductions, and mental wellbeing.
Integrated land management practices will be employed to:
Restore and maintain natural base hydrology
Align with current efforts in native Longleaf Pine forest restoration
Enhance base character and quality of life
Minimize environmental impacts to Tyndall AFB's vital coastal ecosystem
Attract and retain base personnel and staff by making a positive first impression of a sustainable, coastal installation
Improve mental and physical health and wellbeing
Design for greater connection to nature which has been proven in reduce stress levels and a decrease in suicide rates
Reduce infrastructure costs by using grey stormwater infrastructure.
In applying an integrated land management approach one must consider the following as parts of an overall functioning system:
Water and stormwater management
Materials and hardscape
Human health and wellbeing

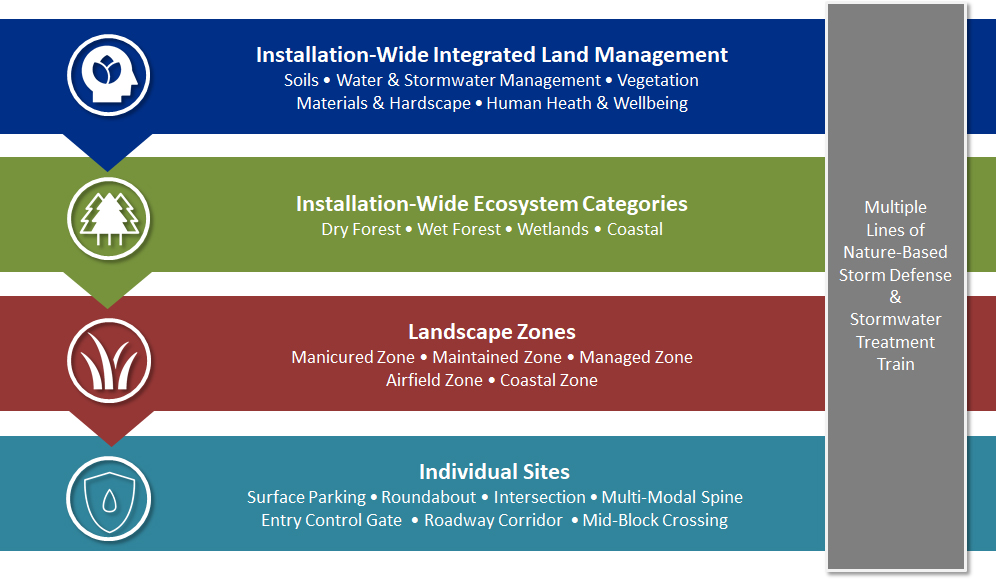

These elements must be balanced across the planning, design, construction, procurement, and operations/maintenance phases of implementation. As shown on Exhibit B04-1, these parts influence and impact the installation-wide ecosystems, the planning and maintenance for the different Landscape Zones, and the design and implementation of projects on individual construction sites throughout Tyndall AFB. Most importantly through proper application of this approach, integrated land management will offer Tyndall AFB multiple lines of nature-based storm defense through creation of a Stormwater Treatment Train.
At a installation-wide scale, Tyndall AFB is categorized into four ecosystem categories (see Exhibit B04-1) based on the Florida Natural Area Inventory of plant communities, dry forest, wet forest, wetlands, and coastal. The restoration of historical ecosystems or natural landscapes provides multiple lines of defense against the effects of storm surge and high winds brought by hurricanes, increasing base resilience and mission readiness. Altogether these lines of defense create a Stormwater Treatment Train, that will help mitigate the impacts of future storm events.
Employed from the building scale to the base scale, the base is divided into five landscape zones (see Exhibit B04-1). Each zone is defined by a number of factors including land use, maintenance intensity, funding sources, and their general visual characteristics. When integrated within building sites, open space, and roadways, these community zones can reduce maintenance while providing synchronized co-benefits for the base and mission readiness.
In implementing integrated land management on Tyndall AFB, refer to the following sections for further guidance:
C01, Site Design, for guidelines on layout and circulation integration
C04, Stormwater, for guidelines on design and siting criteria of stormwater management elements
C06, Landscape, for guidelines on plant selection and design
Soils are the foundation to a healthy, functioning integrated land management approach. Properly managed, they support healthy plants, biological communities, and water quality. They are also critical to stormwater management practices by supporting proper water storage, filtration, and infiltration. Restoring damaged soils, protecting healthy soils, and limiting soil disturbance during construction also provides a number of benefits including reduced design complexities, decreased construction costs, and ease of maintenance. The following are best soil management practices recommended for Tyndall AFB.
Do not compact planting soils more than 85%
Stabilize soils against soil erosion during and after construction
Use planting soils that contain 1% to 5% of organic matter content
Use organic soil amendments such as mature stable compost from local and renewable sources
Use compost that has a carbon-to-nitrogen ratio lower than 25:1, pollutant concentrations below U.S. Environmental Protection Agency (EPA) regulations, and no viable weed seeds or invasive plant propagules
Balance quantities of cut-and-fill used in site grading and reuse existing soils instead of importing soils
Protect stockpiled soil by seeding or covering
Restore compacted soil to a minimum depth of 12 inches by amending it with organic matter, tilling or ripping to reduce compaction, and restoring nutrient profile of the soil
Restoring natural hydrology patterns, implementing water reuse irrigation systems, and protecting and preserving natural water features is critical for advancing stormwater management strategies within an integrated land management approach. Strategies to manage onsite stormwater are critical. These strategies will, promote onsite infiltration, increase evapotranspiration, lower grey infrastructure capital costs, reduce precipitation runoff volumes, and capture pollutant discharges. The following are best stormwater management practices recommended for Tyndall AFB:
Reduce impervious surfaces and implement previous pavements in parking spots, pedestrian circulation routes, or in low traffic areas
Where pervious pavements cannot be used, drain impervious surfaces to vegetated areas that use native species
Minimize turf areas to reduce irrigation demand
Do not use turf in Maintained and Managed zones where nature-based infrastructure is employed
Reduce pesticide and herbicide use in land clearing and maintenance activities to protect natural waterways and water bodies, while protecting pollinator habitats vital to Florida’s agricultural industry
Use onsite infiltration strategies, increase evapotranspiration, and reduce precipitation runoff volumes and pollutant discharges by incorporating nature-based infrastructure
An integrated land management approach considers trees, shrubs, and herbaceous perennials as an ecological system that works together. The use of native plants provides ecosystem benefits, such as pollutant interception and removal, better water management, and the provision of habitat for vital regional pollinator species. Preserving and protecting existing natural vegetated systems with thoughtful building siting and site design will also decrease construction and maintenance costs. The following are best vegetative practices recommended for Tyndall AFB:
Plan and design using common native plant assemblages incorporating trees, shrubs, groundcovers, and other plantings listed in Section C05, Landscape
Minimize turf use in the Manicured Zone and use low groundcovers or native grasses over turf
Coordinate tree plantings with light pole planning and siting to minimize tree canopy interference with street and pedestrian lighting for maximum shade and walkability
Coordinate tree plantings with utility planning and siting to maximize tree canopy on the base, while protecting utility infrastructure against root interference and hurricane damage from downed trees
Eliminate turf from streambanks and wetland edges
An integrated land management approach uses material resources that are regionally sourced. Local materials reflect the northern Florida context, while their use supports the local economy. In addition, to reduce energy costs and promote walkability materials must promote stormwater permeability and exhibit a low percentage of solar reflectance for maintaining cooler surfaces. Landscape design around hardscape and along corridors should also incorporate the tree canopy to maximize shade and reduce the heat island effect. The following are material and hardscape planning best practices recommended for Tyndall AFB:
Maximize hardscape materials with a minimum Solar Reflective Index of 29 to reduce energy demand and increase walkability
Use materials and products that have recycled content or seek opportunities to reuse or repurpose materials slated for disposal
The retention of personnel and attraction of recruits to Tyndall AFB is vital to the sustainability of mission and resilience in executing mission. Planning and designing the base using an integrated land management approach fosters a greater connection to nature and its natural processes which has been linked to stress reduction, healthier lifestyles, and reduced anxiety, depression, and suicide rates. To help accomplish this, the following health and wellbeing planning practices are recommended for Tyndall AFB:
Plan and design outdoor spaces to promote social interaction with favorable views of nature, shaded, and conducive to relaxing activity
Locate public spaces away from mechanical systems, traffic noise, and unsightly views when possible
Use plant species that provide varying textures, fragrance, and color in public spaces
Tyndall AFB is in a unique position to align best management practices in the INRMP and apply them across USAF building sites, corridors, and open space. These best practices mirror the implementation goals in the design and maintenance of performance landscapes, which rely on natural assemblages of native plants that must be applied within built environments.
Native plant communities are assemblages of plant species whose composition are typical of indigenous plant communities in an Ecoregion. A plant palette has been developed in close coordination with Tyndall Natural Resources personnel to align with mission and safety specific requirements which are adapted to Tyndall AFB Florida Natural Area Inventory (FNAI) Plant Communities assemblages.
The 13 major natural resources identified by FNAI are categorized into Dry Forest, Wet Forest, Wetlands, and Coastal. This will guide all future development at Tyndall AFB when identifying native plant assemblages to align with the INRMP. The full Tyndall AFB Master Plant List palettes draw from the following ecosystem categories are appropriate for use on the base.
Corridors and open space with soils and hydrology conditions allowing infiltration of overland water flows within 72 hours or less. Roadway corridors and parking areas must balance elements of aesthetics, safety, site disturbances, and ecology that use common plant species within regularly maintained areas of the base. These areas are considered the Urban Forest. Areas of the Urban Forest that have an herbaceous ground plane but do not include tree canopy are Groundcover Dominant.
Dry forests use native plant assemblages found in FNAI Plant Communities, such as Sandhill-Longleaf Pine Forest, Mixed Hardwood-Coniferous, Upland Hardwood Forest, and Scrubby Flatwoods.
Wet forests are open space with soils and hydrology that exhibit standing water within the subsurface or at the surface with a maximum depth of 2 feet, and do not infiltrate overland water flows within 72 hours. Wet forests are also found in open space with high groundwater conditions.
These areas maximize base-scale amenity strategies in stormwater design by incorporating a balance of moisture tolerant trees, shrubs, and groundcover species.
Open space with soils and hydrology influenced by high groundwater depths and/or standing water within the subsurface or at the surface greater than 2 feet deep, and do not infiltrate overland water flows within 72 hours.
Wetland areas incorporated within Maintained zones must include base-scale amenity strategies within open areas for managing stormwater with vegetated littoral zones where water depths or other conditions limits tree canopy installations to water edges
Wetlands use native plant assemblages found FNAI Plant Communities such as Mixed Scrub-Shrub Wetland, Depression Marsh, and Natural Lakes and Ponds.
Coastal areas are open space within the Managed Zone that comprise tidally influenced lands near the Gulf of Mexico and the East Bay.
These areas contain native plant assemblages conducive only to the coastal environment at Tyndall AFB and contain FNAI Plant Communities such as Salt Marsh, Sand Dunes, Coastal Dune Lakes, and Tidal Flats.
Tyndall AFB is divided into five landscape zones that have specific characteristics and aesthetics based on land use, maintenance intensity, funding sources, and their general visual characteristics. This translates into different and specific landscape requirements across the base.
The Manicured Zone is the most highly maintained landscape on Base and is located within building perimeters and within entrance points around the base. This zone must balance mission safety and clearance antiterrorism (AT) standards with landscape performance and aesthetics. The AT zone is a subzone of the Manicured Zone and is located adjacent to buildings (a minimum of 20 feet wide). Landscape in this zone will have vegetation that meets the AT regulations. Vegetation in the other areas of the Manicured Zone must be drought-resistant and contain native trees for shade and ornamental grasses and native shrubs for color and variety. The different characteristics for this zone will need to be implemented in the Flightline and Support Districts because of their different mission requirements.
The Maintained Zone comprises low herbaceous ground plane plant material, along with trees and shrubs, occurring near buildings such as parking, common public open space, and corridors. Turf area must be minimized or eliminated within the Maintained Zones to reduce maintenance costs, labor, and complexities and to exhibit a Florida panhandle appearance. Nature-based infrastructure such as vegetated stormwater basin and vegetated swales are included in this zone.
The Managed Zone encompasses all perimeter areas upland of the peninsula coastline, as well as large open areas in between facilities on the base. This zone includes areas of wooded pineland plantations, mesic/wet slash flatwoods, wet prairie, freshwater wetlands, and inland ponds and lakes. According to the 2018 INRMP, areas of this zone include work to transform Slash Pine areas into native Longleaf Pine plantations. This effort has expanded in size and scope due to the damage from Hurricane Michael. Installation-wide landscape will first and foremost aim to restore itself to a condition in which it can sustain the demands of nature and society.
This zone includes the runways on the Flightline District and the natural areas between the runways and areas surrounding the perimeter extending to the Pine Forest. The work in this area includes repair to the surface that is disturbed by installation of utilities or for stormwater areas. This area also includes the Flightline. Refer to Section C06, Landscape, for design guidance within the Airfield Zone to meet mission safety and clearance standards for vegetation.
This zone encompasses all areas from the ocean shoreline back to the second line of defense, including beaches, coastal dunes, coastal wetlands, salt marshes, estuaries, coastal dune lakes, and coastal upland. Any work or maintenance proposed in this zone is part of the INRMP or Coastal and Marine Construction Guidelines.
An integrated land management approach requires a balance of healthy soils, natural stormwater management, use of native vegetation, incorporation of locally sourced materials and hardscape, and site design that fosters health and wellbeing.

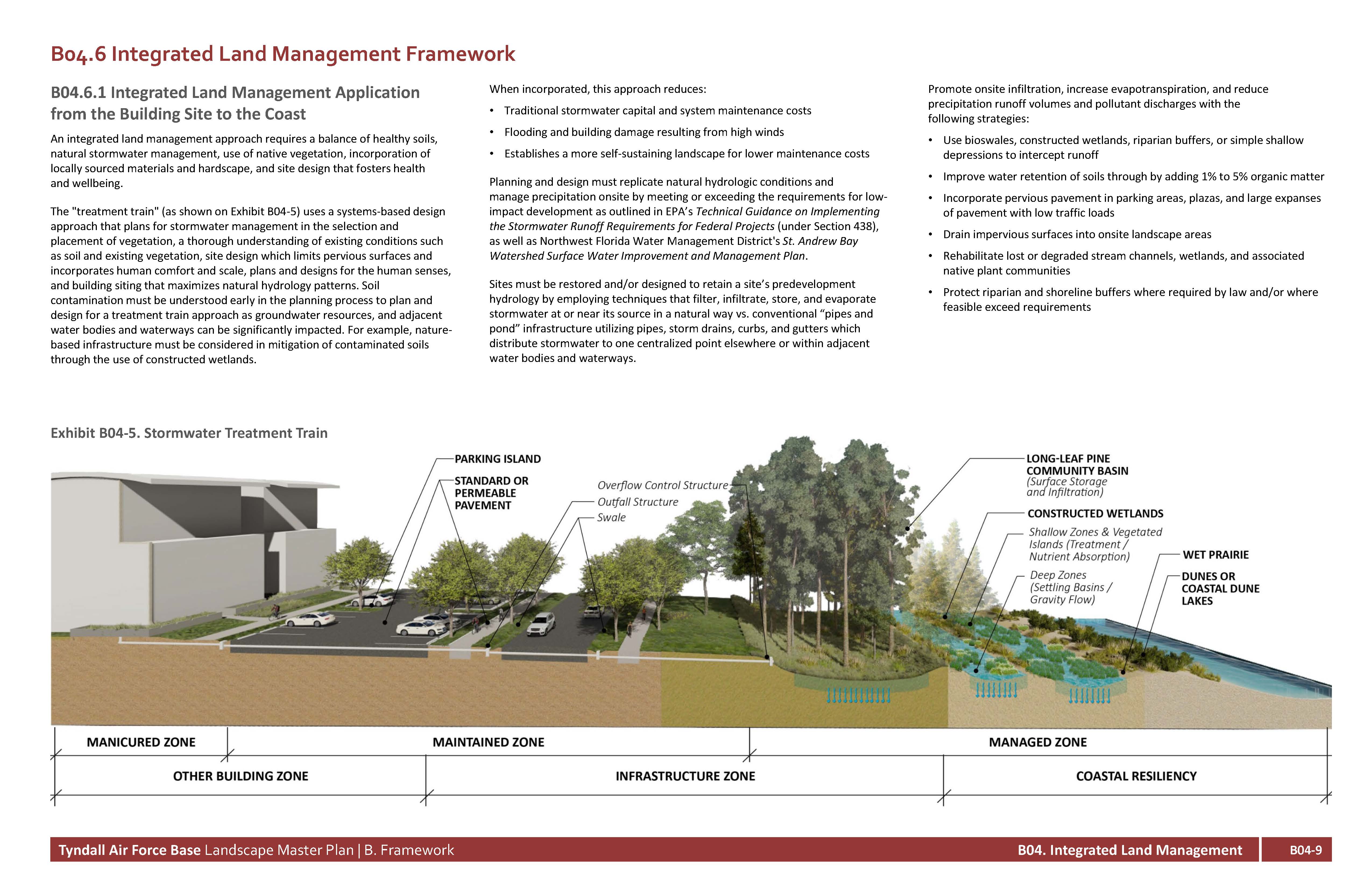

The "treatment train" (as shown on Exhibit B04-5) uses a systems-based design approach that plans for stormwater management in the selection and placement of vegetation, a thorough understanding of existing conditions such as soil and existing vegetation, site design which limits pervious surfaces and incorporates human comfort and scale, plans and designs for the human senses, and building siting that maximizes natural hydrology patterns. Soil contamination must be understood early in the planning process to plan and design for a treatment train approach as groundwater resources, and adjacent water bodies and waterways can be significantly impacted. For example, nature-based infrastructure must be considered in mitigation of contaminated soils through the use of constructed wetlands.
When incorporated, this approach reduces:
Traditional stormwater capital and system maintenance costs
Flooding and building damage resulting from high winds
Establishes a more self-sustaining landscape for lower maintenance costs
Planning and design must replicate natural hydrologic conditions and manage precipitation onsite by meeting or exceeding the requirements for low-impact development as outlined in EPA’s Technical Guidance on Implementing the Stormwater Runoff Requirements for Federal Projects (under Section 438), as well as Northwest Florida Water Management District's St. Andrew Bay Watershed Surface Water Improvement and Management Plan.
Sites must be restored and/or designed to retain a site’s predevelopment hydrology by employing techniques that filter, infiltrate, store, and evaporate stormwater at or near its source in a natural way vs. conventional “pipes and pond” infrastructure utilizing pipes, storm drains, curbs, and gutters which distribute stormwater to one centralized point elsewhere or within adjacent water bodies and waterways.
Promote onsite infiltration, increase evapotranspiration, and reduce precipitation runoff volumes and pollutant discharges with the following strategies:
Use bioswales, constructed wetlands, riparian buffers, or simple shallow depressions to intercept runoff
Improve water retention of soils through by adding 1% to 5% organic matter
Incorporate pervious pavement in parking areas, plazas, and large expanses of pavement with low traffic loads
Drain impervious surfaces into onsite landscape areas
Rehabilitate lost or degraded stream channels, wetlands, and associated native plant communities
Protect riparian and shoreline buffers where required by law and/or where feasible exceed requirements
Employing a nature-based infrastructure strategy across the base produces multiple lines of natural defense against high winds and tidal surge typically experienced during hurricanes.
First Line of Defense: Dunes
Within the Coastal Zones, dunes are act as wave attenuators, slowing the initial force of tidal surge as it reaches land.
Second Line of Defense: Wetlands
Coastal dune lakes and wet prairies act as sponges to absorb waters brought by surge and provide further wave attenuation as tidal surge moves inland.
Third Line of Defense: Longleaf Pine Forests
Forests provide not only further wave attenuation during strong hurricanes but provide a continuous canopy of wind protection which slows and obstructs projectiles carried from high winds.
Inland Defenses: Urban Forests
Within the Support District areas of dry and wet forest and wet ponds provide further protection for installation buildings and structures against wind damage and overland flooding resulting from increased storm events. Maximizing nature-based infrastructure elements within buildings, sites, corridors, and open space within the Support District provides greater absorption and filtration of stormwater for smaller storm events, freeing capacities within the stormwater system for larger storm events.
Continuing the strategy of implementing multiple lines of defense within the Back Bay includes a greater focus on rising waters from surge and higher winds.
First Line of Defense: Marshes and Wet Forests As waters swell within the Back Bay, salt marshes and the wet forest absorb tidal surges and act as a natural water filter as tides subside.
Inland Defenses: Urban Forests Much like the maximizing nature-based infrastructure elements within buildings, sites, corridors, and open space within the Support District, urban forests provide greater absorption and filtration of stormwater for smaller storm events, freeing capacities within the Flightline District’s stormwater system for larger storm events.
